DESCRIPTION
Overhaul Kit 32319485 IR 7100 Replacement

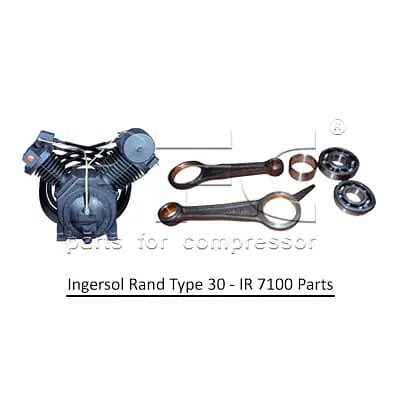

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 7100 replacement from India.
Overhaul Kit 32319485 IR 7100 Replacement

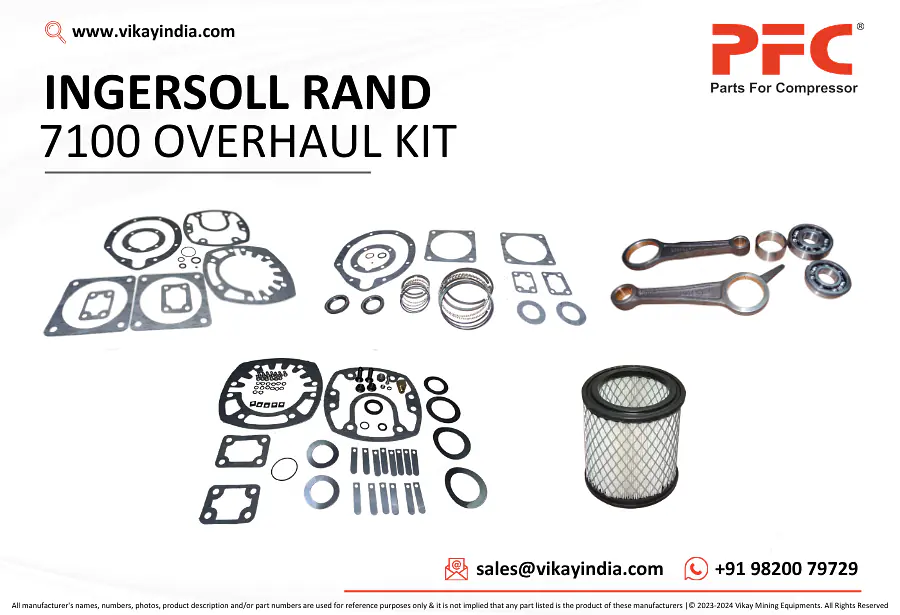

Contain of Kit
| No. | Description | Part No. | QTY |
| A | Valve/Gasket Kit | 32229882 | -- |
| – Finger Valve | 30220115 | 14 | |
| – Discharge Valve Plate | 30181499 | 1 | |
| – Discharge Valve Plate | 30215917 | 1 | |
| – Discharge Valve Spring | 30221394 | 2 | |
| – Discharge Valve Spring | 30221501 | 2 | |
| – Valve Bolt | 32223927 | 2 | |
| – Valve Retainer | 32228306 | 5 | |
| – L/P Head Gasket (Disch.) | 32153801 | 1 | |
| – L/P Head Gasket (Inlet) | 32153827 | 1 | |
| – L/P Airhead Gasket | 32267502 | 1 | |
| – L/P Valve Plate Gasket | 32267510 | 1 | |
| – Unloader Piston Seal | 32254740 | 1 | |
| – Unloader Piston “O” Ring | 32188385 | 1 | |
| – “O” Ring | 95026183 | 1 | |
| – “O” Ring | 95935862 | 1 | |
| – Elbow | 95040143 | 1 | |
| – Hex Nut | 95416335 | 1 | |
| – Lock Washer | 95648150 | 1 | |
| – Whiz-Lock Nut | 97166946 | 2 | |
| – Fillister Head Screw | 32035511 | 13 | |
| – Washer | 32217382 | 14 | |
| – Fillister Head Screw | 32224008 | 1 | |
| – Lock Nut | 32229684 | 1 | |
| – HP Upgrade Kit (A1) | 32254708 | -- | |
| – L/P Head Gasket (Inlet) | 32153827 | 1 | |
| – H/P Airhead Gasket | 32252801 | 1 | |
| – H/P Spacer Plate Gasket | 32252819 | 2 | |
| – H/P Valve Plate Gasket | 32252827 | 1 | |
| – Flat Washer | 32279408 | 6 | |
| – Hex Cap Washer | 95104196 | 6 | |
| B | Ring/Gasket Kit | 32194029 | -- |
| – H/P Ring Set | 32194276 | 1 | |
| – L/P Ring Set | 32194144 | 1 | |
| – Oil Seal | 32204588 | 2 | |
| – Cylinder Flange Gasket | 32221384 | 2 | |
| – Frame End Cover Gasket | 30439277 | 1 | |
| – Shaft End Cover Gasket | 30295166 | 1 | |
| – Manifold Gasket | 30294870 | 2 | |
| – LP Head Gasket (Disch.) | 32153801 | 1 | |
| – HP Head Gasket (Inlet) | 32153827 | 1 | |
| – “O”Ring | 95022695 | 1 | |
| – Oil Filler Plug “O” Ring | 95022158 | 1 | |
| – Copper Gasket | 95674750 | 1 | |
| C | Bearing/Conn Rod Kit | 32127474 | -- |
| – Crankpin Bushing | 32295883 | 1 | |
| – L/P Connecting Rod | 32003659 | 1 | |
| – H/P Connecting Rod | 30217327 | 1 | |
| – Ball Bearing | 95951299 | 1 | |
| – Ball Bearing W/Snap Ring | 95951257 | 1 | |
| D | Gasket Set | 32229908 | -- |
| – “O” Ring | 95022158 | 1 | |
| – “O” Ring | 95026183 | 1 | |
| – “O” Ring | 95022695 | 1 | |
| – “O” Ring | 95935862 | 1 | |
| – Unloader Piston “O” Ring | 32188385 | 1 | |
| – L/P Airhead Gasket | 32267502 | 1 | |
| – L/P Valve Plate Gasket | 32267510 | 1 | |
| – Frame End Cover Gasket | 30439277 | 1 | |
| – Shaft End Cover Gasket | 30295166 | 1 | |
| – Cylinder Gasket | 32221384 | 2 | |
| – L/P Head Gasket (Disc.) | 32153801 | 1 | |
| – L/P Head Gasket (Inlet) | 32153827 | 1 | |
| – H/P Upgrade Kit (E1) | 32254708 | -- | |
| – L/P Head Gasket | 32153827 | 1 | |
| – H/P Airhead Gasket | 32252801 | 1 | |
| – H/P Spacer Plate Gasket | 32252819 | 2 | |
| – H/P Valve Plate Gasket | 32252827 | 1 | |
| – Flat Washer | 32279408 | 6 | |
| – Hex Cap Screw | 95104196 | 6 | |
| E | Air Filter Element | 32012957 | 1 |
| Total | 137 |
