Overhaul Kit IR 10T3NLM Replacement
Regular price
₹0.00
DESCRIPTION

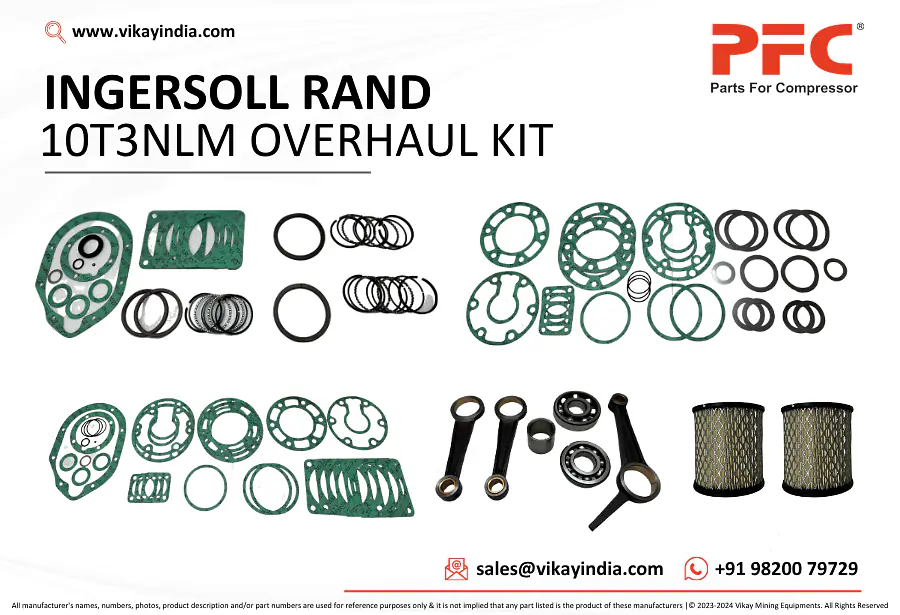

Overhaul Kit VK-OK10T3NLM - IR 10T3NLM Replacement
Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model IR 10T3NLM replacement from India.
Overhaul Kit IR 10T3NLM Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Valve/Gasket Kit | 32132953 | -- |
| – H/P Airhead Gasket | 30294300 | 1 | |
| – H/P Airhead Center Gasket | 37130432 | 1 | |
| – H/P Unloader Body Gasket | 30294631 | 1 | |
| – O-Ring,Unloader Piston | 32225468 | 2 | |
| – Unloader Cover Gasket | 30294656 | 2 | |
| – Lp Airhead Gasket | 30294193 | 2 | |
| – Lp Airhead Center Gasket | 37007747 | 2 | |
| – Unloader Body Gasket | 30294698 | 2 | |
| – O-Ring,Unloader Piston | 32225468 | 1 | |
| – Unloader Cover Gasket | 30294656 | 1 | |
| – Discharge Valve Plate | 30215917 | 1 | |
| – Discharge Valve Spring | 30221394 | 1 | |
| – Inlet Valve Spring | 30221527 | 1 | |
| – Inlet Valve Plate | 30215859 | 1 | |
| – Discharge Valve Plate | 30181499 | 2 | |
| – Discharge Valve Spring | 30221501 | 2 | |
| – Lp Inlet Valve Spring | 30221550 | 2 | |
| – Inlet Valve Plate | 30215891 | 2 | |
| B | Ring / Gasket Kit | 32132961 | -- |
| – O-Ring,Oil Gauge | 32225476 | 1 | |
| – Washer, Copper-Pilot Valve | 32225500 | 1 | |
| – Gasket, Frame End Cover | 30439269 | 1 | |
| – O-Ring, Thrust Pin | 32225492 | 1 | |
| – Gasket, Shaft End Cover | 30295174 | 1 | |
| – Seal, Oil | 32204554 | 1 | |
| – Gasket, Flange | 37135985 | 1 | |
| – Set, Ring 4.25" (Modified) | 32015125 | 1 | |
| – Flange Gasket | 30294201 | 1 | |
| – Gasket, Flange | 37135985 | 2 | |
| – Set, Ring 5" | 32015109 | 2 | |
| – Flange Gasket | 30294201 | 3 | |
| – Gasket, Manifold | 30294821 | 3 | |
| C | Bearing / Conn Rod Kit | 32132979 | -- |
| – Rod, Connecting- Low Pressure | 32222382 | 2 | |
| – Rod, Connecting- High Pressure | 32222374 | 1 | |
| – Bearing, Ball | 95305660 | 1 | |
| – Bearing, Ball- W/Snap Ring | 95214003 | 1 | |
| – Bushing, Crankpin | 37002342 | 1 | |
| D | Gasket Set | 37126729 | -- |
| – O-Ring,Oil Gauge | 32225476 | 1 | |
| – Washer, Copper-Pilot Valve | 32225500 | 1 | |
| – Gasket, Frame End Cover | 30439269 | 1 | |
| – O-Ring, Thrust Pin | 32225492 | 1 | |
| – Gasket, Shaft End Cover | 30295174 | 1 | |
| – H/P Airhead Gasket | 30294300 | 1 | |
| – H/P Airhead Center Gasket | 37130432 | 1 | |
| – H/P Unloader Body Gasket | 30294631 | 1 | |
| – O-Ring,Unloader Piston | 32225468 | 2 | |
| – Unloader Cover Gasket | 30294656 | 2 | |
| – Lp Airhead Gasket | 30294193 | 2 | |
| – Lp Airhead Center Gasket | 37007747 | 2 | |
| – Unloader Body Gasket | 30294698 | 2 | |
| – O-Ring,Unloader Piston | 32225468 | 1 | |
| – Unloader Cover Gasket | 30294656 | 1 | |
| – Gasket, Flange | 37135985 | 1 | |
| – Flange Gasket | 30294201 | 1 | |
| – Gasket, Flange | 37135985 | 2 | |
| – Flange Gasket | 30294201 | 2 | |
| – Gasket, Manifold | 30294821 | 3 | |
| E | Air Filter Element | 32012957 | 2 |
| Total | 83 |
