IR 10T3NL parts are the replacement components for the Ingersoll Rand Type 30 model 10T3 NL non-lubricated reciprocating compressor. Vikay supplies new aftermarket parts from India, including HP and LP concentric ring valves and piston, cylinder and crosshead sets in 4.25 inch and 5 inch.
NL means non-lubricated: no oil reaches the cylinder, so the rings and rider bands are self-lubricating materials rather than cast iron, and the valves work in a different thermal and material environment. Standard lubricated Type 30 rings will fail quickly in this machine and can score the bore.

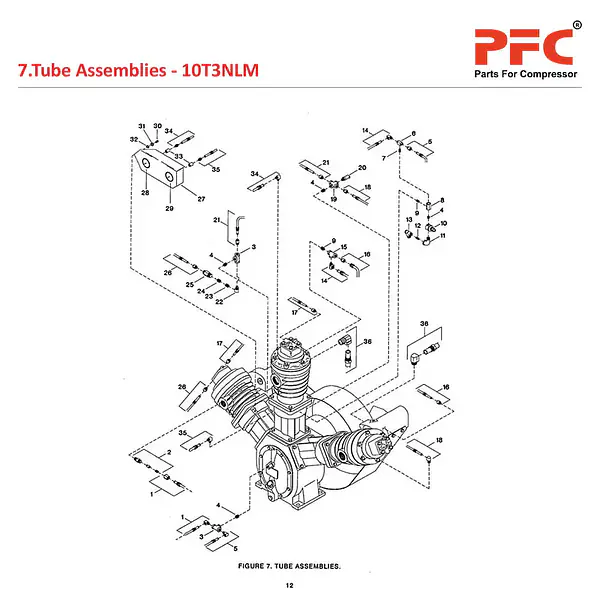

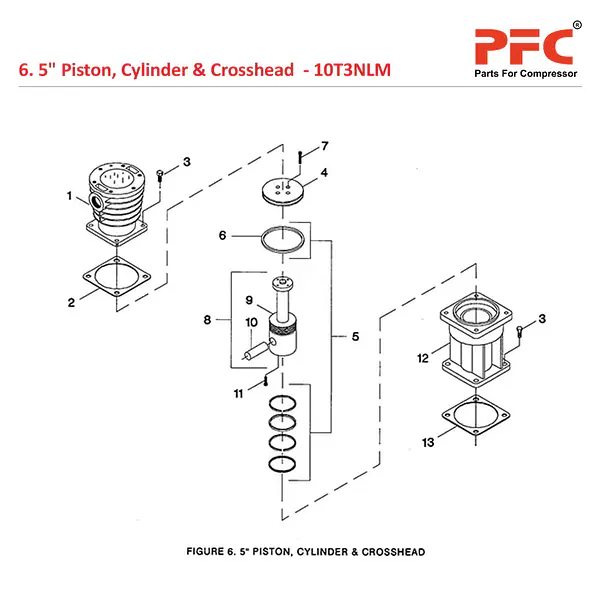

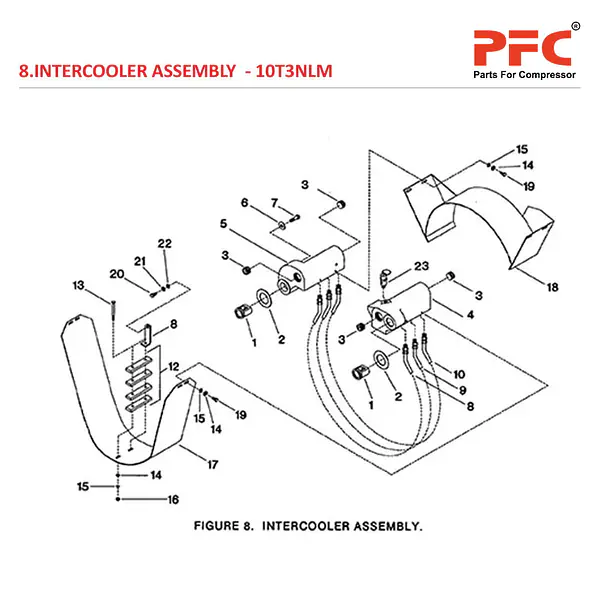

The holding covers HP and LP concentric ring valves, piston, cylinder and crosshead assemblies in 4.25 inch and 5 inch, high-pressure air cylinder 32222408, the compressor frame, the bare compressor, tube assemblies and the intercooler assembly.
Machines like this are specified where oil carryover into the air stream is unacceptable — food and beverage, pharmaceutical, packaging, laboratory and instrument air.
These are new aftermarket parts; the Ingersoll Rand name and part numbers identify fitment only.
- Non-lubricated. No oil reaches the cylinder, so rings and rider bands are self-lubricating materials rather than cast iron, and valve materials differ.
Can I fit standard Type 30 rings to a 10T3 NL?
- No. Standard rings rely on an oil film that is not present here. They fail rapidly and can score the cylinder bore.
Which piston and crosshead size do I need?
- 4.25 inch and 5 inch assemblies are listed separately. Confirm the size from your parts manual before ordering.
