Remote Control Complete Simba Junior Parts

availability: This product is not available in the selected currency.

  • Nothing

Description

Remote Control Complete with Nipples Replacement

Vikay is a global supplier of new aftermarket replacement parts -Remote Control Complete with Nipples Replacement for Atlas Copco Simba-Junior from India.

View PDF

 Product

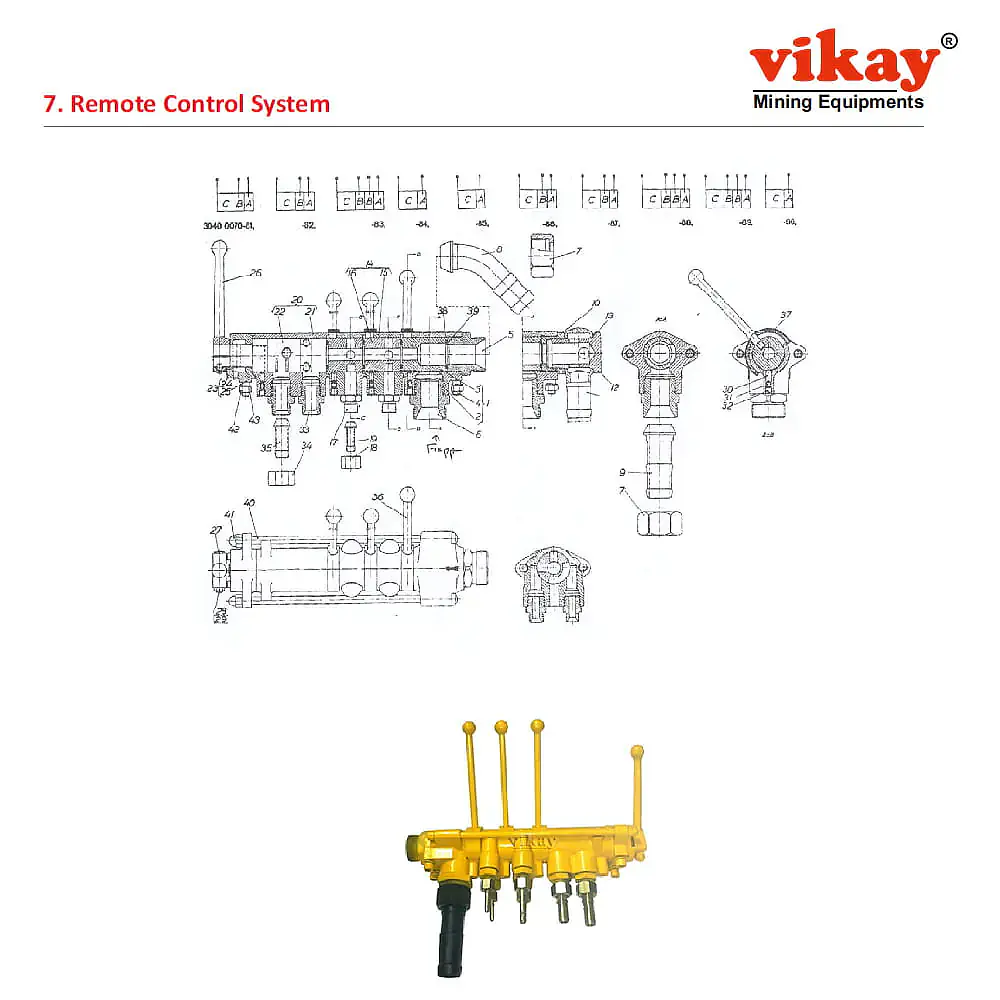

Remote Control Complete with Nipples

No. Description Modified Ref. Part No.
- Remote Control Complete With Nipple   3040007083
1 - Valve Casing Compl.   3040003080
2 - Valve Casing   -
3 - Valve   3040003100
4 - Stud (PS 12X42)   0246128000
5 - Adapter   3040003200
6 - Nipple   9000034700
7 - Coupling Nut   9000033500
8 -Nipple, Bent 11/2"   3040005100
9 - Nipple, Straight 11/2"   9000017700

14 - Valve Casing, Compl.   3040002780
15 - Valve Casing   -
16 - Valve   3040002900
17 - Nipple 3/8"   9000036800
18 - Coupling Nut 3/8"   9000033100
19 - Nipple 3/8"   9000032100

  - Valve Casing,Compl. w. Cover   3040006181
20 - Valve Casing, Compl.   3040006180
21 - Valve Casing   -
22 - Valve   3040006200
23 - Cover, Compl.   3040006380
24 - Cover   3040006300
25 - Stud (PS 12x42)   0246128000
26 - Lever   3040006400
27 - Screw (B6LS 10x60)   0147136900
28 -Spring Washer (FBB 10.2)   0333213000
29 - Nut (B6LM 10)   0266111100
30 - Pin   3040003700
31 - Spring   3040003800
32 - Screw   3040003900
33 - " Nipple   9000034500
34 - " Coupling Nut 3/4"   9000033300
35 - " Nipple 1/2"   9000010000
35 - " Nipple 3/4"   9000032500
30 - Pin   3040003700
31 - Spring   3040003800
32 - Screw   3040003900
36 - Lever   3040005400
37 - Guard   3040003500
38 - Guide Ring   3040006000
39 - O-Ring (39.2 x 3A)   0663213300
40 - Side Bolt   3040004600
41 - Cap Nut   3040004100
42 - Nut (B6LM 12)   0266111200
43 - Spring Washer (FBB 12.2)   0333213600

The following part are available on special order

No. Description Ref. Part No.
  Short Lever
36 Lever 3040003400
  When using 1/4" hose for reverse rotation
19 Nipple 1/4"   9000039600
  Holder For Wagon Drill
19 Holder 3040006800
