Valve Inlet IR 9 1/2 x 5 ESV NL Air Compressor Parts
Regular price
₹0.00
Valve Inlet IR 9 1/2 x 5 ESV NL Air Compressor Parts
Regular price
₹0.00
DESCRIPTION
Assembly Valve Inlet For Ingersoll Rand - Model 9 1/2 x 5 NL
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for Assembly Valve Inlet For Ingersoll Rand - Model 9 1/2 x 5 NL from India.
| S.No | Description | Ref Part Nos | Qty |
| – | Assembly Valve Inlet | – | |
| 1 | – Seat Valve | 1 | |
| 2 | – Seat Plate | 1 | |
| 3 | – Holder Guide | 2 | |
| 4 | – Guide Valve ** | 4 | |
| 5 | – Stop Plate | 1 | |
| 6 | – Bolt Hex Head 1/4" X 1-1/2" | 6 | |
| 7 | – Washer Lock | 2 | |
| 8 | – Channel & Spring Set | 1 | |
| 9 | – Screw Guide | 2 |
⇩ Product
- Page 1

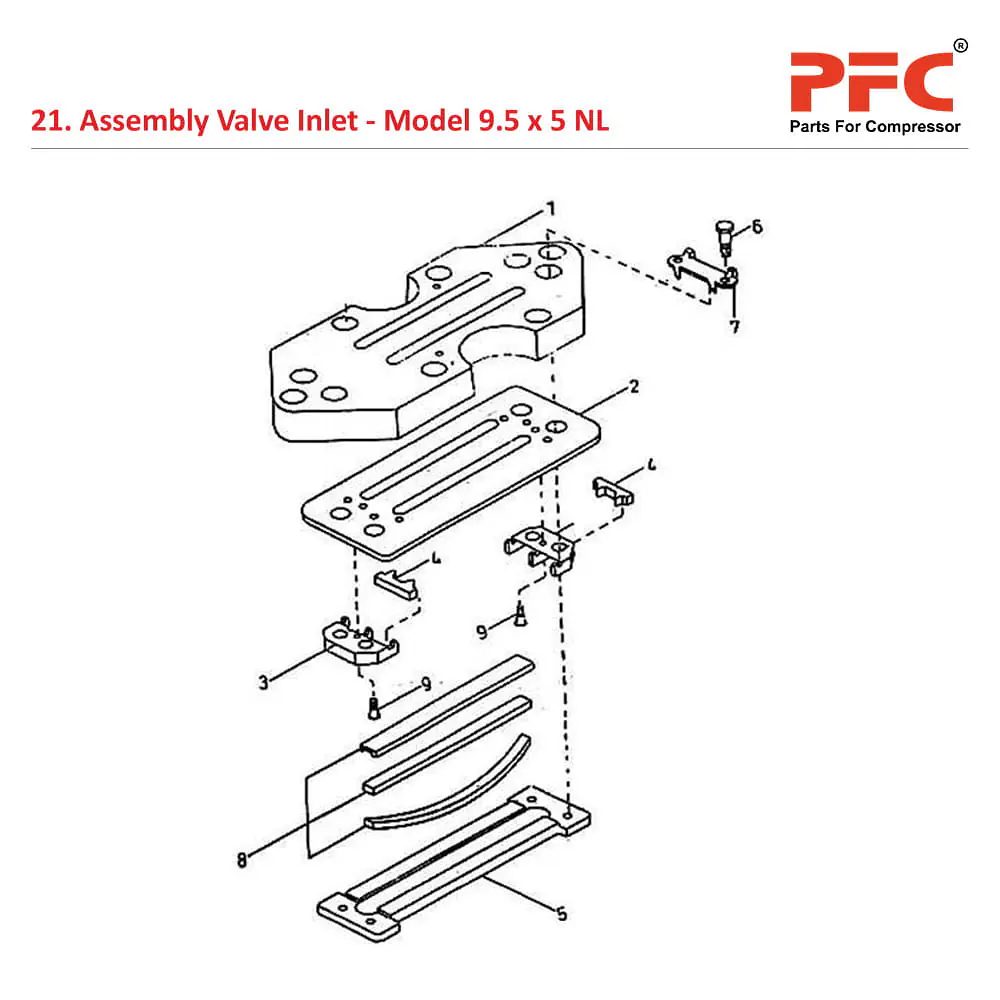

Assembly Valve Inlet
| S.No | Description | Ref Part Nos |
| 1 | SEAT VALVE | 37074762 |
| 2 | SEAT PLATE | 37021581IM |
| 3 | HOLDER GUIDE | 31535867IM |
| 4 | GUIDE VALVE ** | 37041324 |
| 5 | STOP PLATE | 30252944 |
| 6 | BOLT HEX HEAD 1/4" X 1-1/2" | 95105466 |
| 7 | WASHER LOCK | 31225485 |
| 8 | CHANNEL & SPRING SET | 30504450IM |
| 9 | SCREW GUIDE | 31208549IM |
