Bare Compressor IR 5T2 NL Air Compressor Parts

Description

Bare Compressor For Ingersoll Rand Type 30 - Model 5T2NL

PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Bare Compressor For Ingersoll Rand Type 30 - Model 5T2NL from India.

Product

Page 1

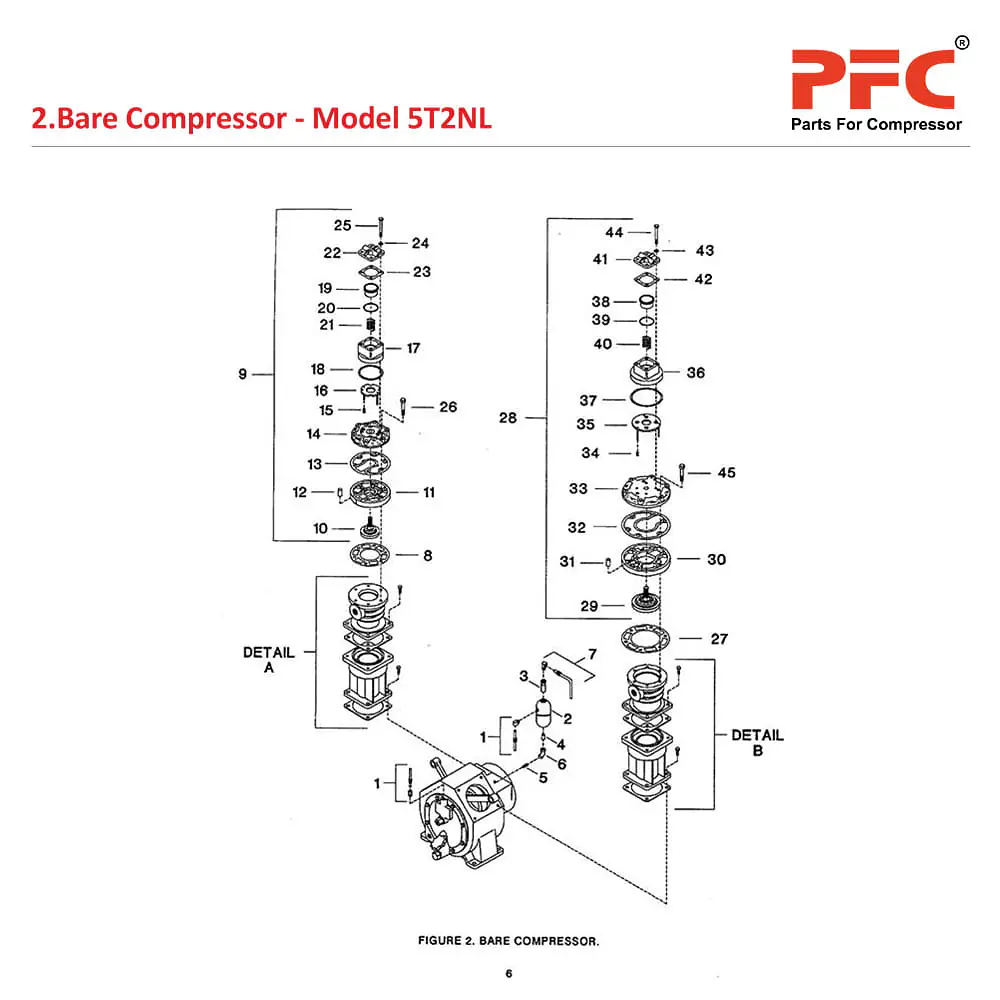

Bare Compressor

Ref. No.	Part No.	Description
2-1	32241523	Assembly, Tube - Pilot Valve/Breather - Complete1.
2-2	32225534	Bottle, Breather Trap
2-3	32225526	Plug, Breather Element
2-4	32230864	Nipple, Hex - 3/8"
2-5	95691077	Nipple, Close - 3/8 X 1'
2-6	95030672	Elbow, Pipe - 3/8' - 45°
2-7	32241549	Assembly, Tube - Breather Trap - Completet
2-8	30294508	Gasket, Airhead - High Pressure
2-9	32226318	Assembly, Airhead/Valve - High Pressure
2-10	37004827	Valve, 35 - Complete (See Figure 3, Page 8)
2-11	32222705	Airhead, Bottom
2-12	37114030	Dowel
2-13	37007754	Gasket, Airhead - Top/Bottom
2-14	32226177	Airhead, Top
2-15	32012395	Spring, Unloader Pin
2-16	32016578	Plate, Unloader - Complete
2-17	37129889	Body, Unloader
2-18	30294680	Gasket, Unloader Body
2-19	32222507	Piston, Unloader
2-20	32225468	0-Ring, Unloader Piston
2-21	30416853	Spring, Unloader Piston
2-22	37129905	Cover, Unloader
2-23	30294656	Gasket, Unloader Cover
2-24	32225286	Washer - M10
2-25	32225138	Capscrew - M10 X 85
2-26	32225146	Capscrew - M12 X 75
2-27	30294193	Gasket, Airhead - Low Pressure
2-28	32226300	Assembly, Airhead/Valve - Low Pressure
2-29	37004843	Valve, 50 - Complete (See Figure 4, Page 9)
2-30	32222739	Airhead, Bottom
2-31	37114030	Dowel
2-32	37007747	Gasket, Airhead - Top/Bottom
2-33	32226185	Airhead, Top
2-34	32012395	Spring, Unloader Pin
2-35	32222788	Plate, Unloader - Complete
2.36	37129947	Body, Unloader
2-37	30294698	Gasket, Unloader Body
2-38	32222507	Piston, Unloader
2-39	32225468	0-Ring, Unloader Piston
2-40	30416853	Spring, Unloader Piston
2-41	37129905	Cover, Unloader
2-42	30294656	Gasket, Unloader Cover
2-43	32225286	Washer - M10
2-44	32225138	Capscrew - M10 X 90
2-45	32225146	Capscrew - M12 X 75

Details

type: product
SKU: 5T2NL02
