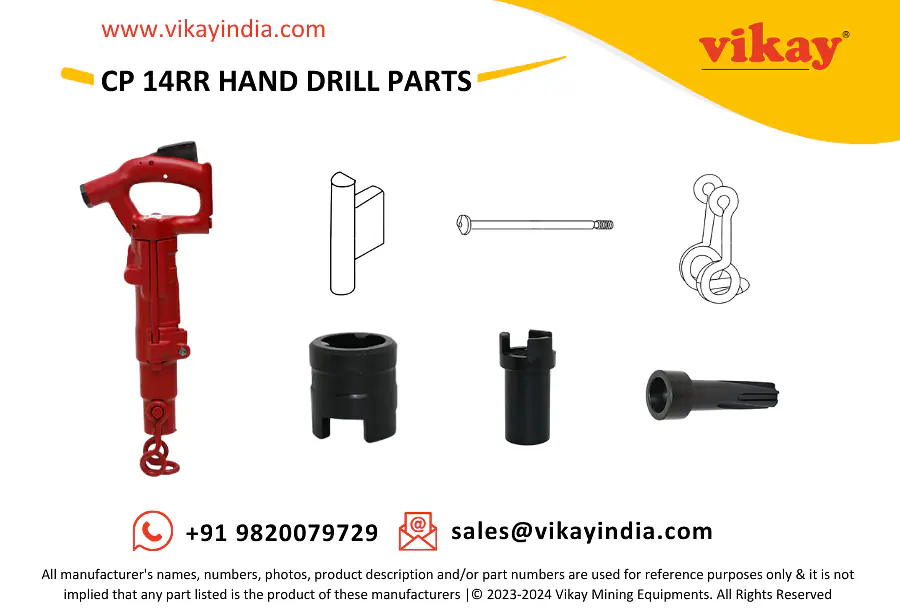

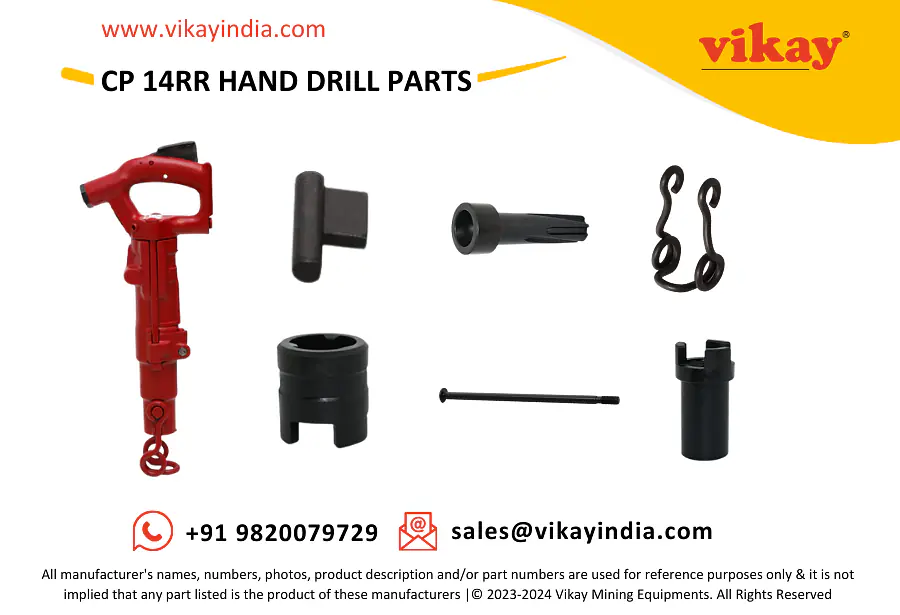

CP 14RR Chicago Pneumatic Hand Drill Parts
Regular price
₹0.00
CP 14RR Chicago Pneumatic Hand Drill Parts
Regular price
₹0.00
DESCRIPTION

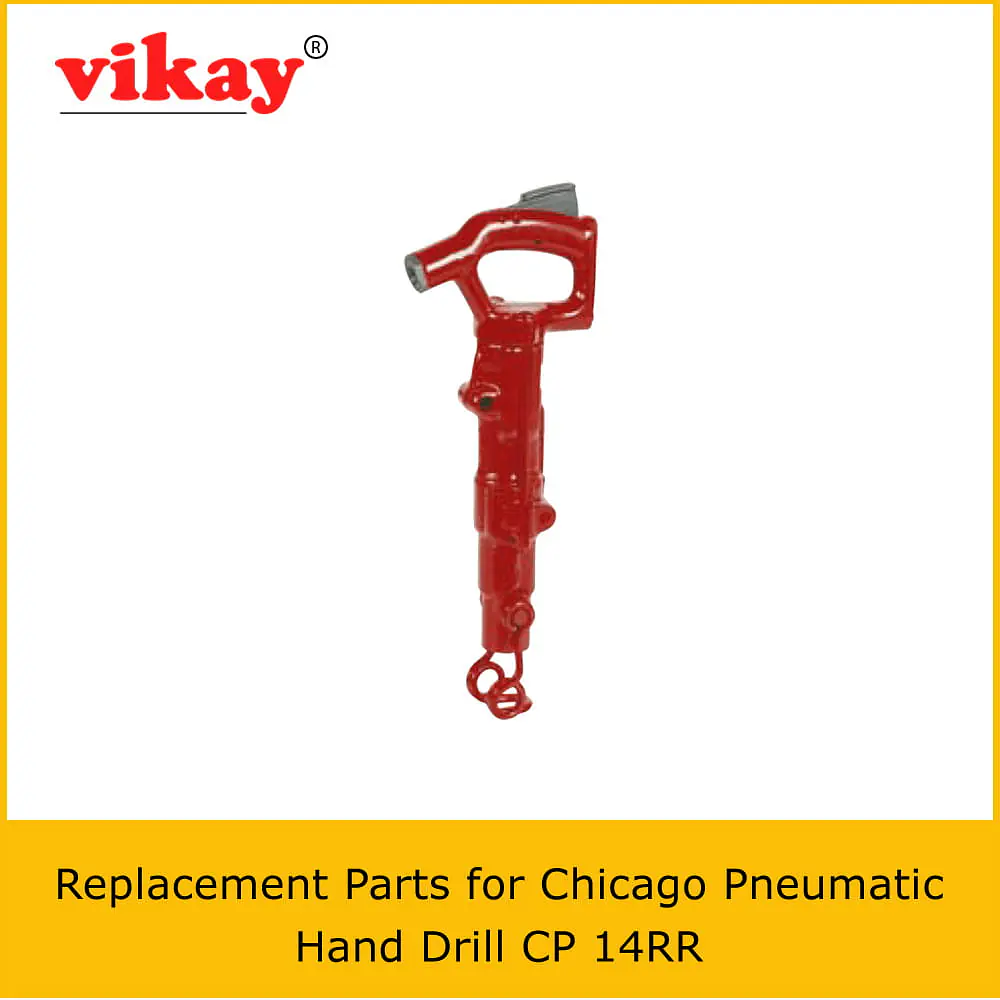

CP-14RR Hand Drill Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Hand Drill CP-14RR from India.
Product
- Page 1
Hand Drill 14RR Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Bolt - Thru | F061564 | |
| 2 | Lever - Throttle | F064534 | |
| 3(4-9) | Handle, complete | R119157 | |
| 4 | Handle | - | |
| 5 | Plug - Pipe | C077941 | |
| 6 | Tube - Oil regulating | R085580 | |
| 7 | Plug - Pipe | C068799 | |
| 8 | Bushing - Valve stem | R085599 | |
| 9 | O-ring | R086098 | |
| 10(11-12) | Valve - Throttle, complete | R086329 | |
| 11 | Valve stem | - | |
| 12 | Throttle valve head | - | |
| 13 | Spring - Throttle valve | R085596 | |
| 14 | Bushing - Air inlet | R085595 | |
| 15 | Pin - Throttle lever stop | H082555 | |
| 16 | Pin throttle lever | A043627 | |
| 17 | Rubber tube | R085934 | |
| 18 | Tube - Air | R079223 | |
| 19 | Plunger - Oil regulating | R085582 | |
| 20 | O-ring | C069083 | |
| 21 | Seat | R085935 | |
| 22 | Valve | R085591 | |
| 23 | Seat - Front valve | R085592 | |
| 24 | Piston | R000120 | |
| 25 | Cylinder | R085575 | |
| 26 | Bushing - Cylinder | R041684 | |
| 27 | Sleeve - Shifter | R051350 | |
| 28 | Ring - Ratchet | R093154 | |
| 29 | Sleeve - Chuck | R085601 | |
| 30 | Chuck | R085600 | |
| 31 | Plug - Pipe | C068064 | |
| 32 | Spring - Plunger | R051353 | |
| 33 | Plunger - Detent | R051349 | |
| 34 | Pawl | R085588 | |
| 35 | Spring - Pawl | R086654 | |
| 36 | Fronthead | R041685 | |
| 37 | Plunger - Shifter | R051348 | |
| 38 | Nut - Thru bolt | P070438 | |
| 39 | Retainer wire | R050584 | |
| 40 | Safety label | CA144007 |
