IR 7 x 5 ESV 1 LUB Parts
IR 7 x 5 ESV 1 LUB parts are the replacement components for the lubricated version of the Ingersoll Rand ESV compressor with a 7 inch low-pressure and 5 inch high-pressure cylinder. Vikay supplies new aftermarket parts from India, including pistons, port plates, heads, valves and unloaders.
The figures in an ESV designation are the cylinder bore sizes: a 7 x 5 works a 7 inch low-pressure cylinder into a 5 inch high-pressure cylinder. LUB marks the lubricated build, where oil reaches the cylinder — the non-lubricated NL version of the same frame uses different ring and valve materials and its parts are not interchangeable.

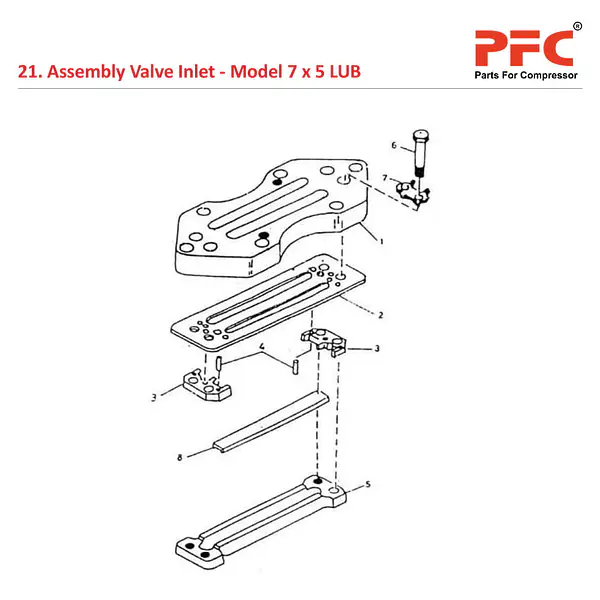

The holding covers outer end and frame end port plates, frame and outer heads, pistons and piston rods, inlet valves, combined inlet and unloader valves, unloader assemblies and discharge valve assemblies.
When ordering, give the bore combination, the LUB or NL build and the compressor serial number. All three matter: the ESV range spans several bore combinations that share component shapes.
These are new aftermarket parts; the Ingersoll Rand name identifies fitment only.
FAQS
What do the numbers in 7 x 5 ESV mean?
- They are the cylinder bore sizes in inches — a 7 inch low-pressure cylinder working into a 5 inch high-pressure cylinder.
What is the difference between the LUB and NL versions?
- LUB is the lubricated build, where oil reaches the cylinder. NL is non-lubricated and uses self-lubricating ring materials and different valve materials. Their parts are not interchangeable.
What do you need from me to quote?
- The bore combination, whether the machine is LUB or NL, and the compressor serial number. Component shapes are similar across the ESV range, so all three are needed to be certain.
