IR 8 x 7 ESV 1 NL Parts
IR 8 x 7 ESV 1 NL parts are the replacement components for the non-lubricated Ingersoll Rand ESV compressor with an 8 inch low-pressure and 7 inch high-pressure cylinder. Vikay supplies new aftermarket parts from India, including port plates, heads, pistons, rods and valves.
The non-lubricated build of the 8 x 7 ESV frame runs without oil in the cylinder, using self-lubricating rings and rider bands.

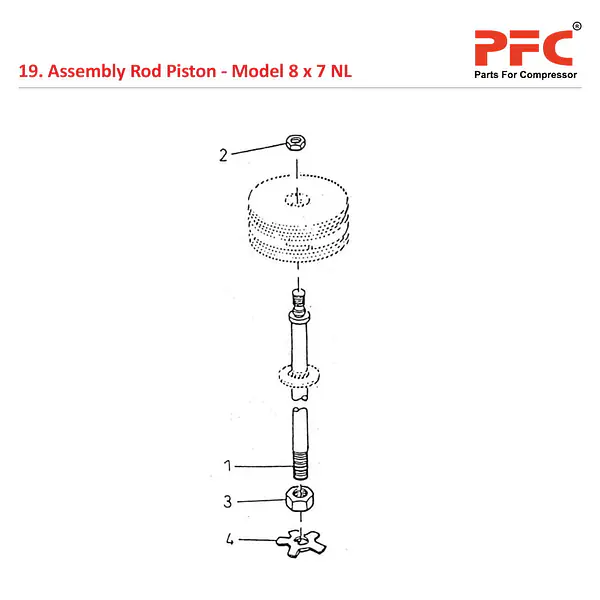

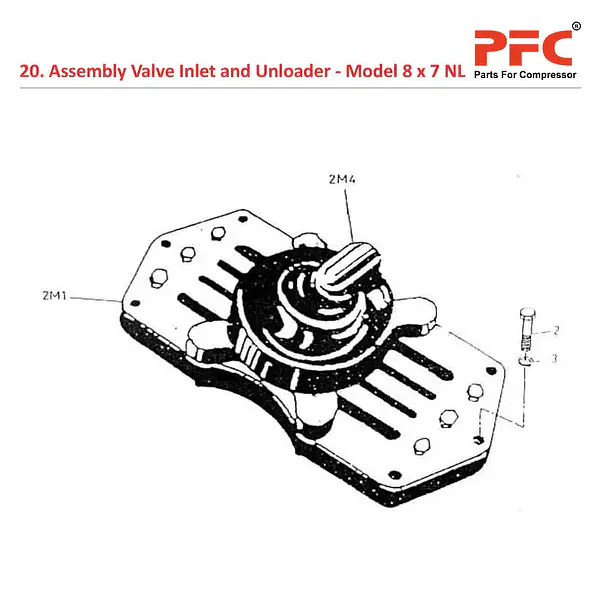

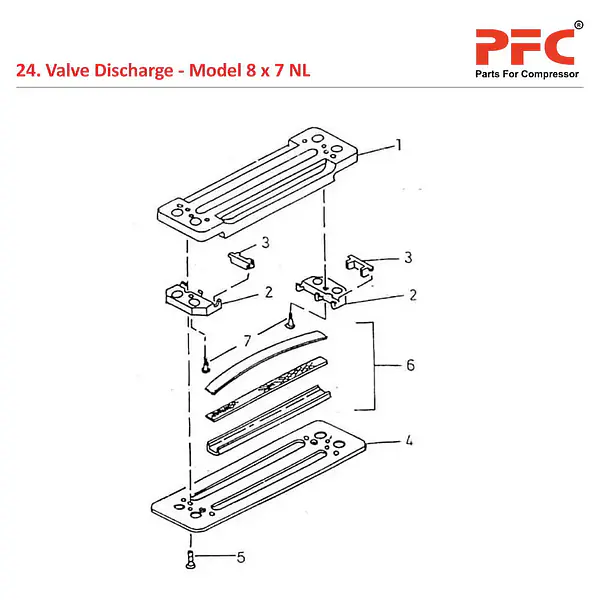

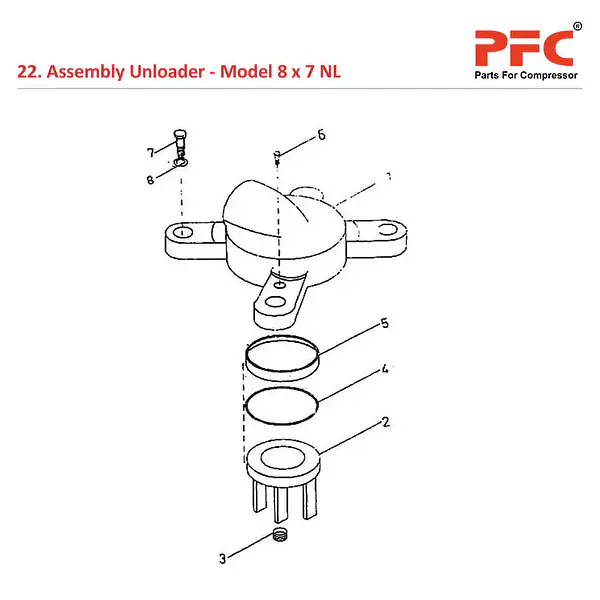

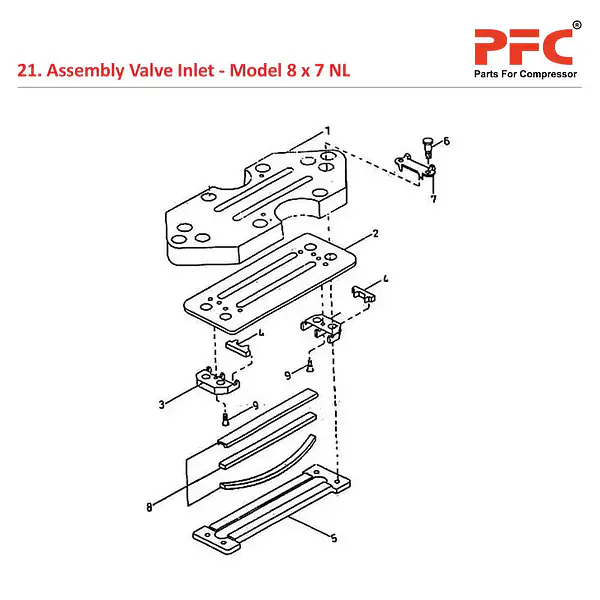

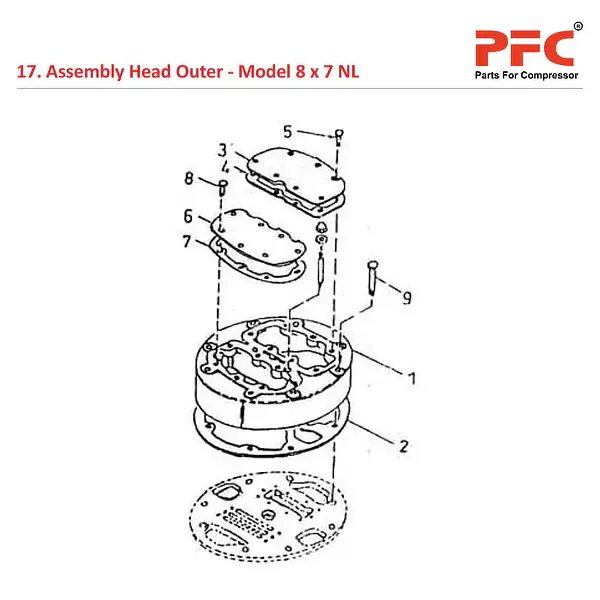

The holding covers outer end port plates, frame and outer heads, pistons and piston rods, inlet valves, combined inlet and unloader valves, unloader assemblies, discharge valves and the oil stop plate.

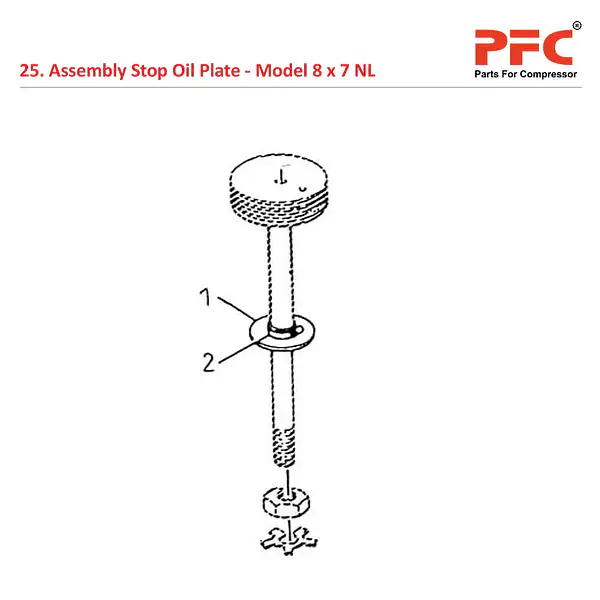

The oil stop plate is worth naming because it is what keeps this machine oil-free. It sits between the crankcase and the cylinder end and prevents crankcase oil migrating along the rod into the compression space. If oil is appearing downstream on a machine specified as non-lubricated, this is the first thing to inspect, before anyone concludes the air quality problem lies elsewhere in the plant.
These are new aftermarket parts; the Ingersoll Rand name identifies fitment only.
FAQS
Oil is appearing downstream of a non-lubricated machine — where do I look?
- Start with the oil stop plate and the rod packing. Their job is to stop crankcase oil migrating along the piston rod into the compression space.
What does the oil stop plate do?
- It separates the crankcase from the cylinder end and blocks oil migration along the rod, which is what keeps a non-lubricated machine delivering oil-free air.
Are LUB and NL parts interchangeable?
- No. The builds use different ring and valve materials. Confirm which your machine is before ordering.
