IR 9 x 7 ESV 1 NL Parts
IR 9 x 7 ESV 1 NL parts are the replacement components for the non-lubricated Ingersoll Rand ESV compressor with a 9 inch low-pressure and 7 inch high-pressure cylinder. Vikay supplies new aftermarket parts from India, including connecting rods, crossheads, air ends, cylinders and port plates.
Note the bore: this is a 9 inch machine, not a 9 1/2. Both exist in the ESV range and the difference is easy to miss in writing, so check the machine's own plate before ordering rather than working from memory.

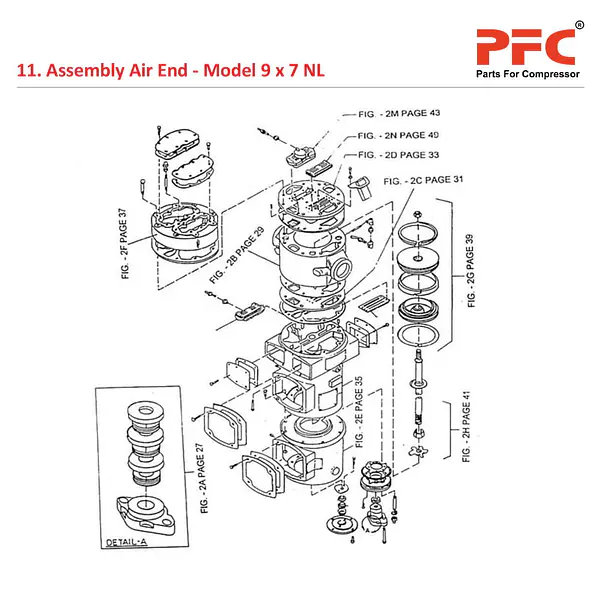

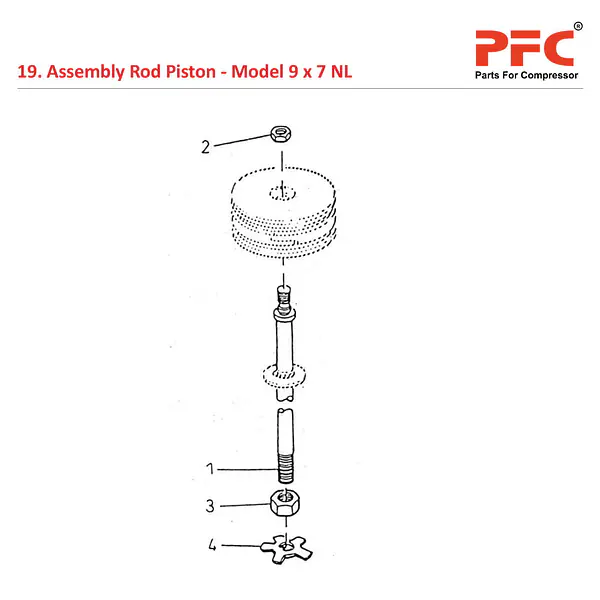

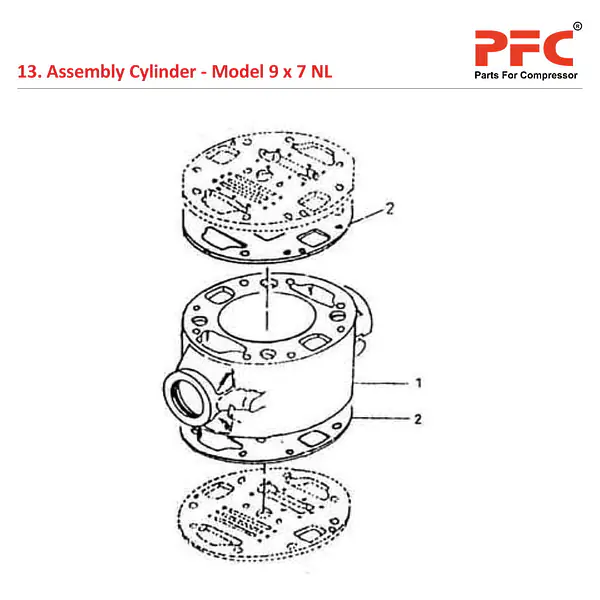

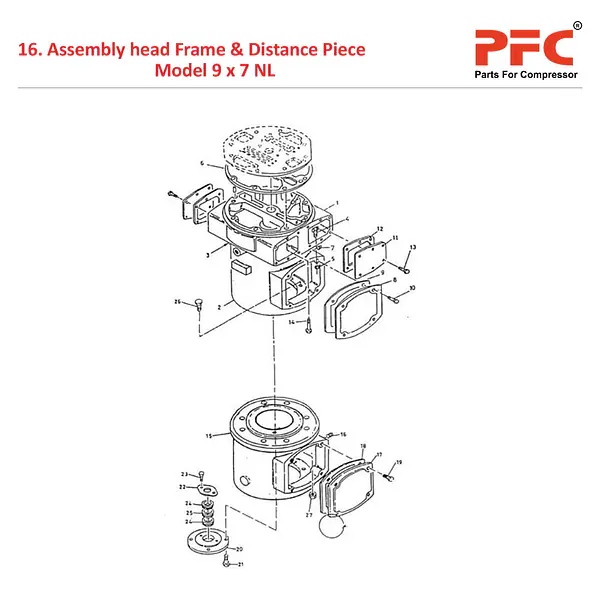

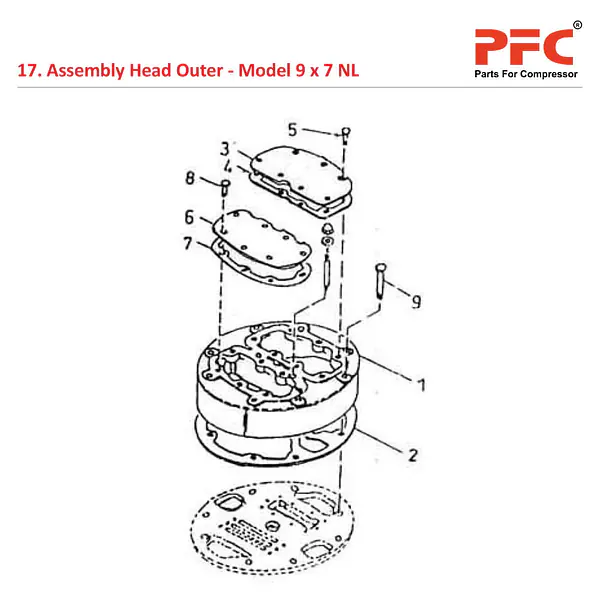

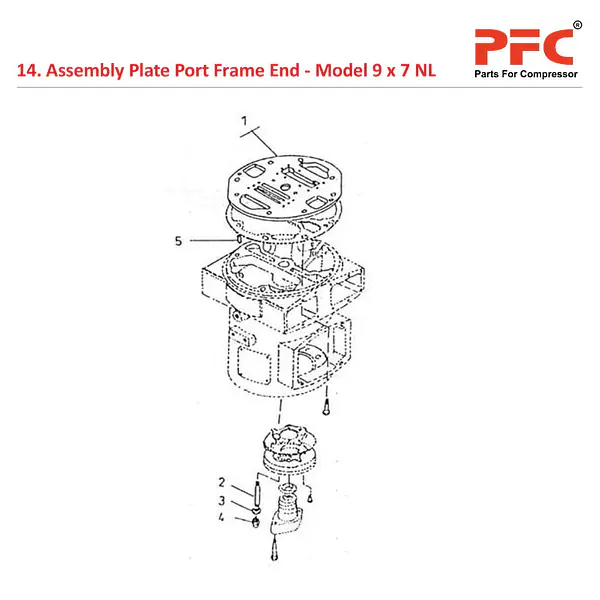

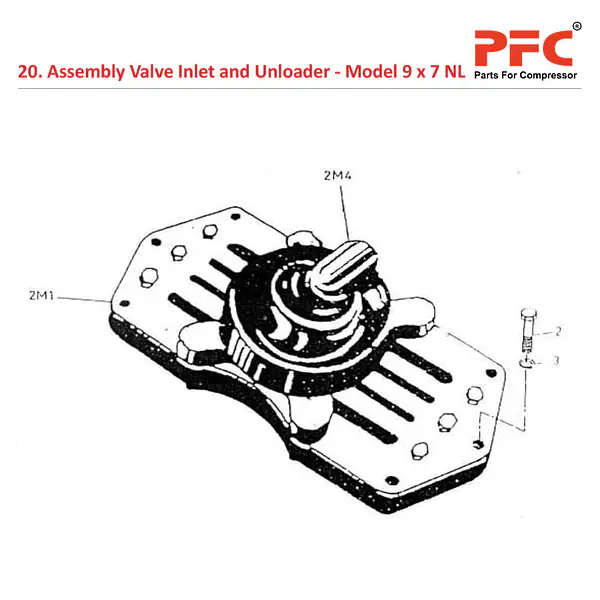

The holding reaches from the running gear through to the cylinder end: connecting rods, crossheads, air ends, metallic packing, cylinders, frame end and outer end port plates, frame and outer heads and pistons.
This bore combination is listed in the non-lubricated build only. If your machine is a lubricated 9 x 7, send the serial number and the details from the plate so it can be identified properly rather than assumed.
These are new aftermarket parts; the Ingersoll Rand name identifies fitment only.
FAQS
Is this the same as the 9 1/2 x 7?
- No. This is a 9 inch low-pressure cylinder, the other is 9 1/2 inch. Both exist in the range, so check the machine plate rather than working from memory.
Is a lubricated version of the 9 x 7 available?
- This bore combination is listed here in the non-lubricated build. If yours is lubricated, send the serial number and plate details and it will be identified properly.
What running-gear parts are stocked?
- Connecting rods, crossheads and air ends, alongside cylinders, port plates, heads and pistons.
