IR 9 1/2 x 5 ESV 1 LUB Parts
IR 9 1/2 x 5 ESV 1 LUB parts are the replacement components for the lubricated Ingersoll Rand ESV compressor with a 9 1/2 inch low-pressure and 5 inch high-pressure cylinder. Vikay supplies new aftermarket parts from India, including packing, cylinders, port plates, pistons and valves.
The 9 1/2 x 5 is the widest step in this ESV set: a 9 1/2 inch low-pressure cylinder feeding a 5 inch high-pressure cylinder. The larger the ratio between stages, the harder the second stage works and the more the interstage condition matters.

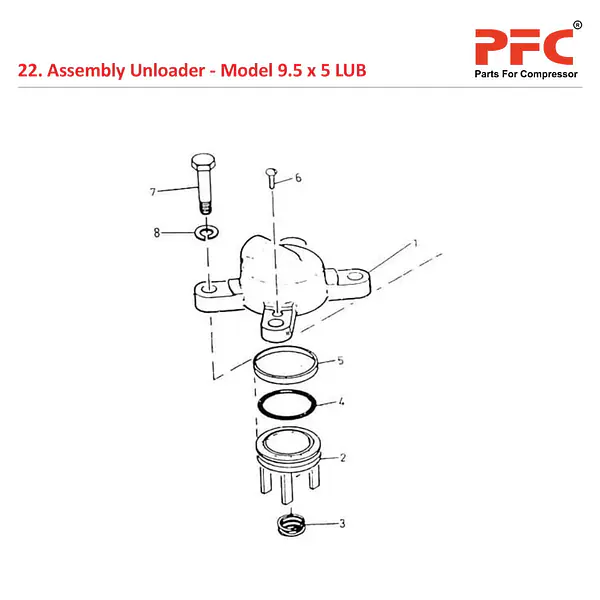

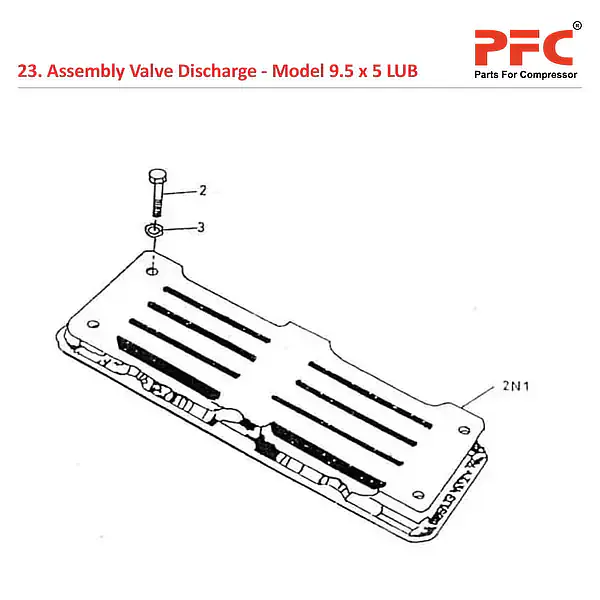

The holding covers metallic packing, cylinders, frame end and outer end port plates, frame and outer heads, pistons and piston rods, inlet valves, combined inlet and unloader valves and discharge valves.
When quoting, give the bore combination exactly as written — 9 1/2 rather than 9, since a 9 x 7 also exists in this range and the two are easy to transpose in an email.
These are new aftermarket parts; the Ingersoll Rand name identifies fitment only.
FAQS
Is 9 1/2 the same as 9?
- No. Both 9 1/2 and 9 bore machines exist in this ESV range, so write the fraction out. Transposing them is the commonest error on this family.
What do the two figures mean?
- The cylinder bore sizes in inches — a 9 1/2 inch low-pressure cylinder working into a 5 inch high-pressure cylinder.
Do LUB parts fit the NL version?
- No. The non-lubricated build uses different ring and valve materials, so confirm your build before ordering.
